Display Monitors

TEMPEST NEC E244FL MONITOR

TEMPEST LEVEL I

ML1-E244FL

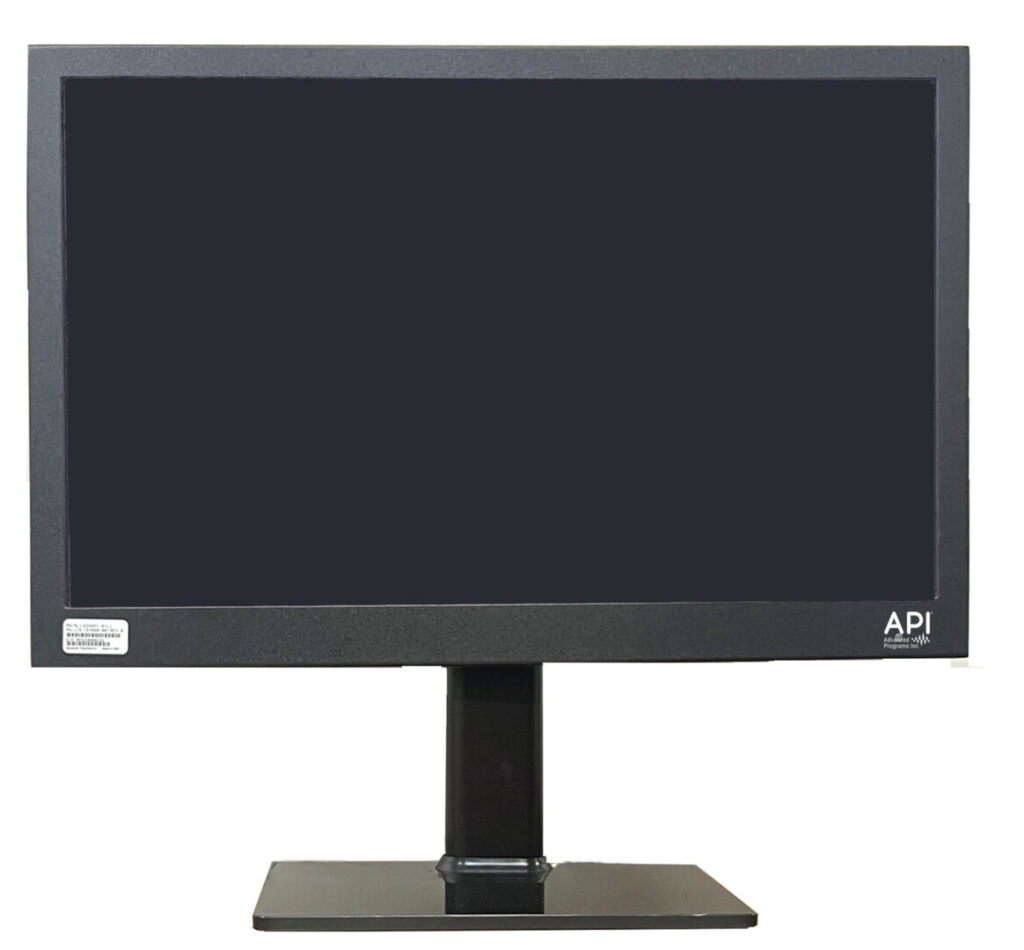

24″ LCD Display

API’s 24” TEMPEST Level I certified ML1-E244FL display is our standard desktop LCD display, based on the NEC desktop E Series. On-Screen Display (OSD) design make set-up, use and adjustment quick and simple while its built-in Blue Light and Flicker Free technologies protect the user’s vision.

Download Datasheet
  • NSTISSAM TEMPEST/1-92 Level I
    NATO SDIP-27 A
  • Energy efficient Carbon Footprint Meter/Carbon Savings Meter; ECOMode
  • Native resolution 1920 x 1080p
  • DisplayPort video interface
  • More than 16.7 Million colors
  • “Joy stick” menu button located on the back of the monitor
Native Resolution1920 x 1080p
Viewable Image Size23.8 inches (diagonal)
Aspect Ratio16:9
Panel TechnologyVA TFT with W-LED backlight
Response Time6 ms (typical)

Synchronization Range

31.5-83 kHz, Horizontal (analog/digital)
50-75 Hz, Vertical

Brightness250 cd:m2 (typical)
Contrast Ratio3000:1 (typical)
30,000:1 (dynamic)
Display Colors>16.7 million
Physical Specifications
Height14 inches (35.6 cm)
Width22.6 inches (57.4 cm)
Depth2.35 inches (5.97 cm)
Weight11.5 lbs (5.22 kg)
WarrantyThree (3) years, parts and labor

*In Process
**Configuration options available

TEMPEST LEVEL I

ML1-V654Q

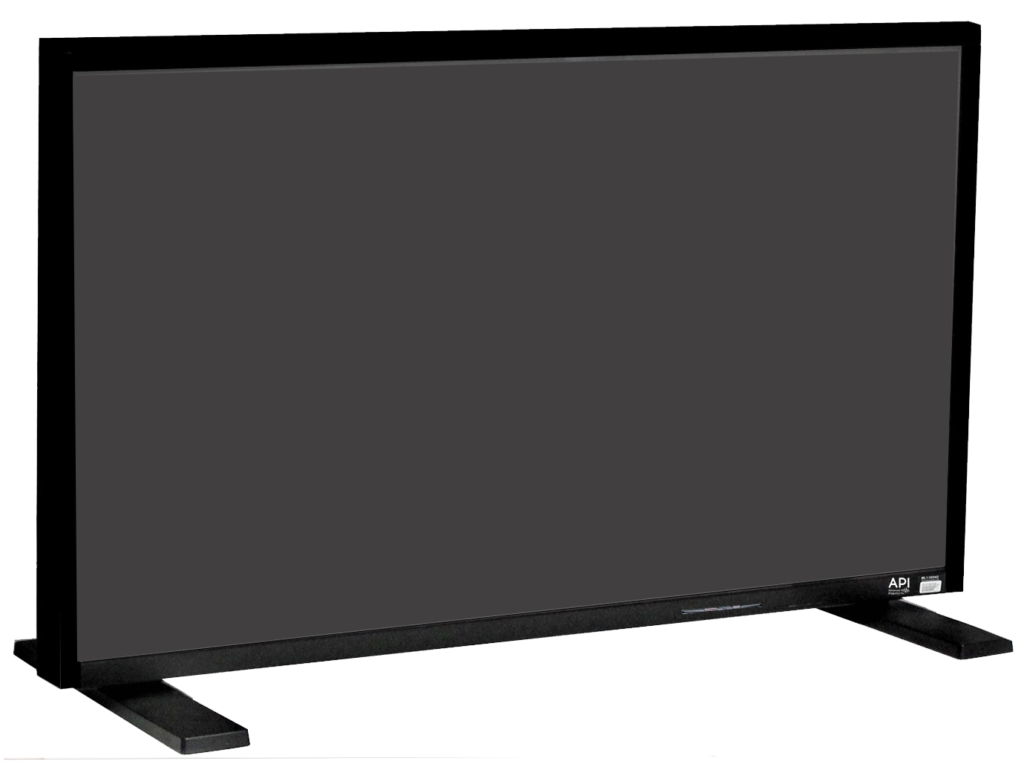

65″ LCD Display

API’s TEMPEST Level I certified ML1-V654Q is based on the NEC V654Q 65″ monitor. The high definition panel allows for clear and detailed imagery, while its real-time temperature sensors and integrated cooling fans maintain the professional quality necessary for even the most demanding 24/7 environments. The V654Q is available with either a DisplayPort or fiber video input and includes various mounting options.

TEMPEST NEC V654Q 65" MONITOR
Download Datasheet
  • NSTISSAM TEMPEST/1-92 Level I
    NATO SDIP-27, A
  • DisplayPort or fiber video interface
  • UHD 3840 x 2160p display resolution
  • 4000:1 Contrast ratio
  • 65″ screen size
  • Convenient mounting options
Native Resolution

3840 x 2160p

Viewable Image Size65″ diagonal
Aspect Ratio16:9
Panel TechnologyVA with direct LED backlights
Response Time8 ms
Refresh Rate60 Hz

Synchronization Range

31.5 – 91.1 kHz, Horizontal (analog/digital)
24 – 85 Hz, Vertical

Brightness500 cd:m2 (typical)
Contrast Ratio4000:1 (typical)
Display Colors>1.07B (10 bit)
Physical Specifications
 Height33.72 inches (85.6 cm)
 Width58.32 inches (148.1 cm)
 Depth3.56  inches (9.04 cm)
Weight≤ 135 lbs (61.23 kg)
Warranty
Three (3) years, parts & labor

*In Process
**Configuration options available

Convenient Mounting Options

Ask the API Sales Team to help you choose the right solutions for your organization.

API, TEMPEST NEC Flat panel mobile stand

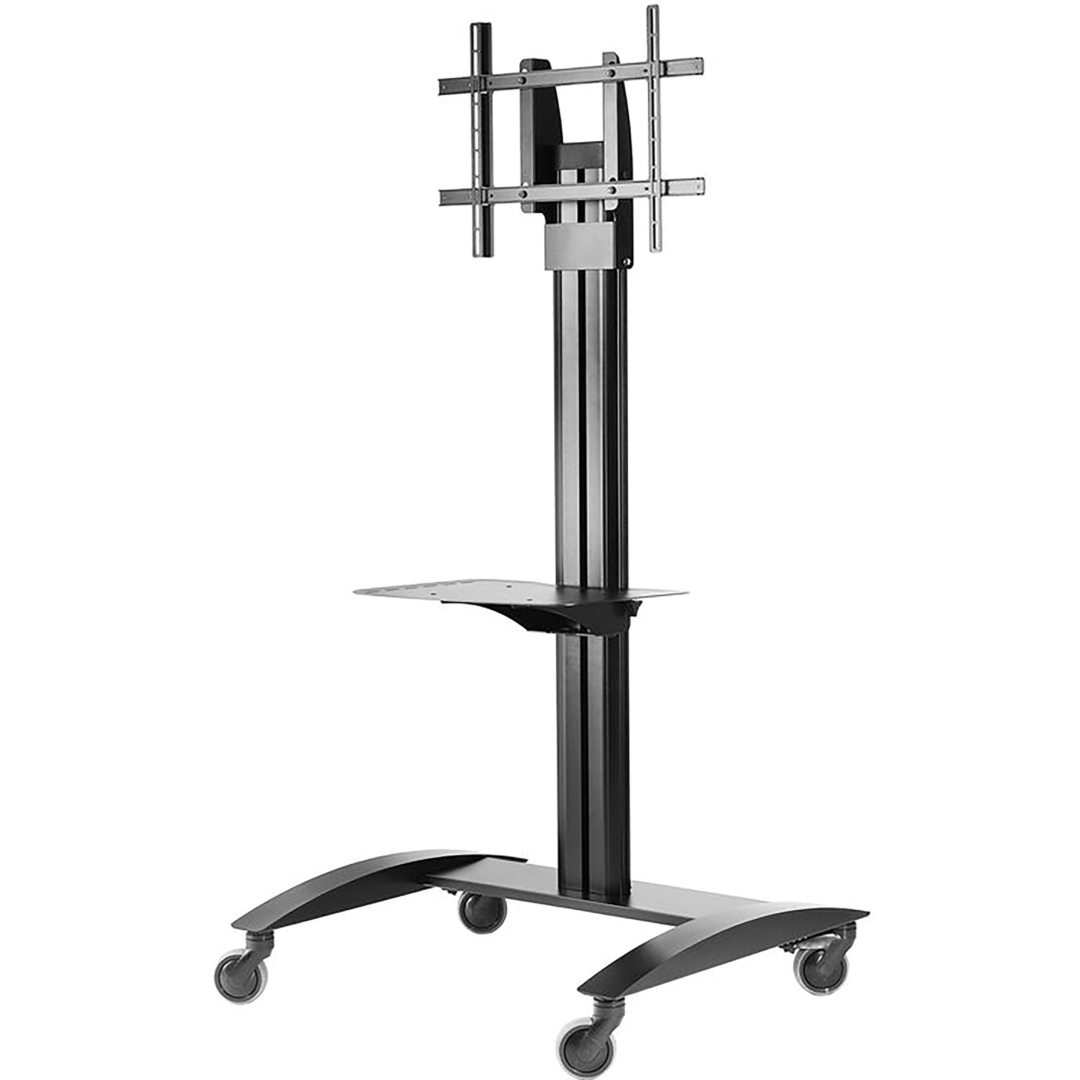

Mobile Display Stand

Compatible with 43-inch and 65-inch display monitors

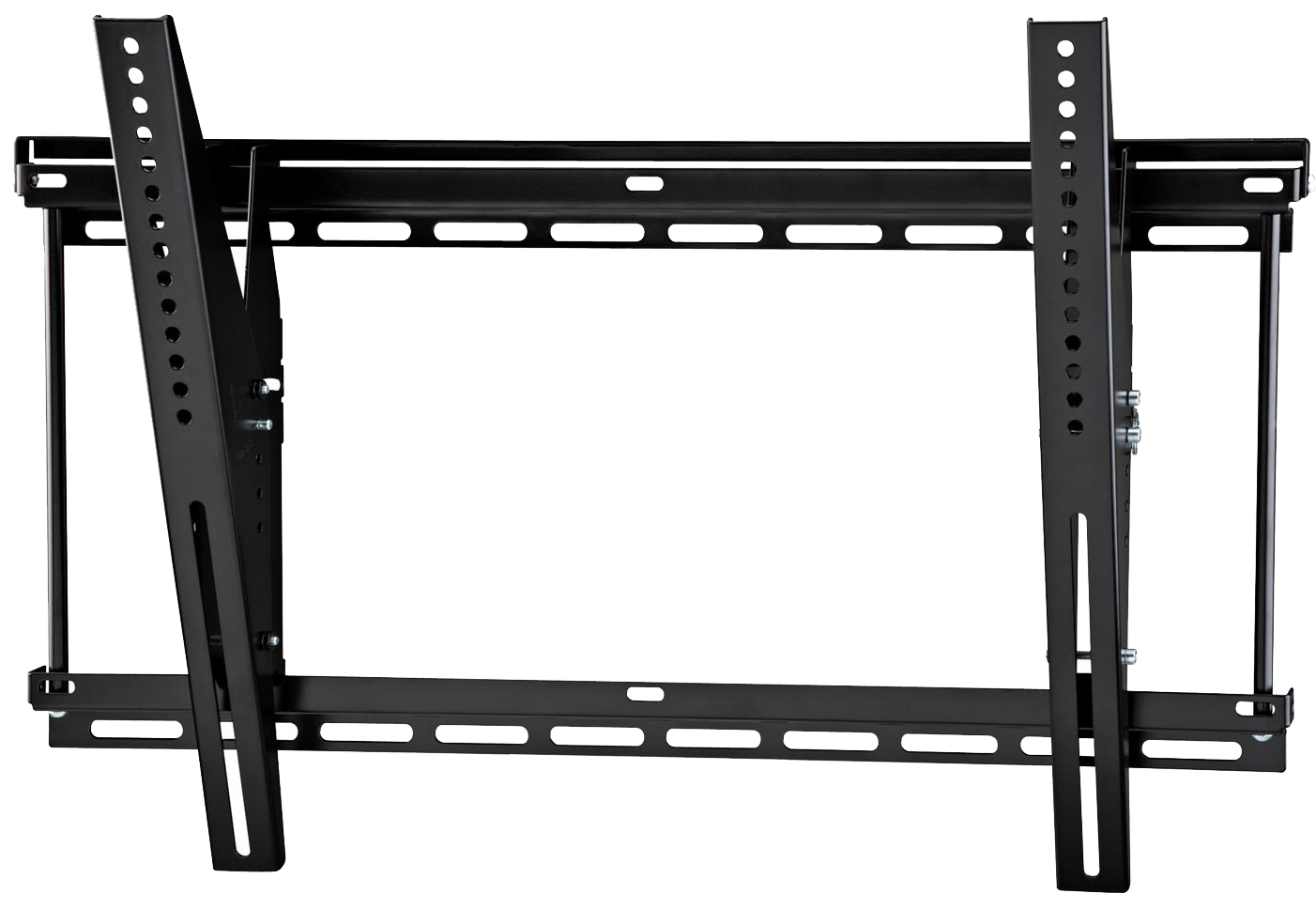

Wall Mount Kit

Compatible with 43-inch and 65-inch display monitors

Contact Us

FOR FURTHER DETAILS ON THESE AND OTHER API PRODUCTS
