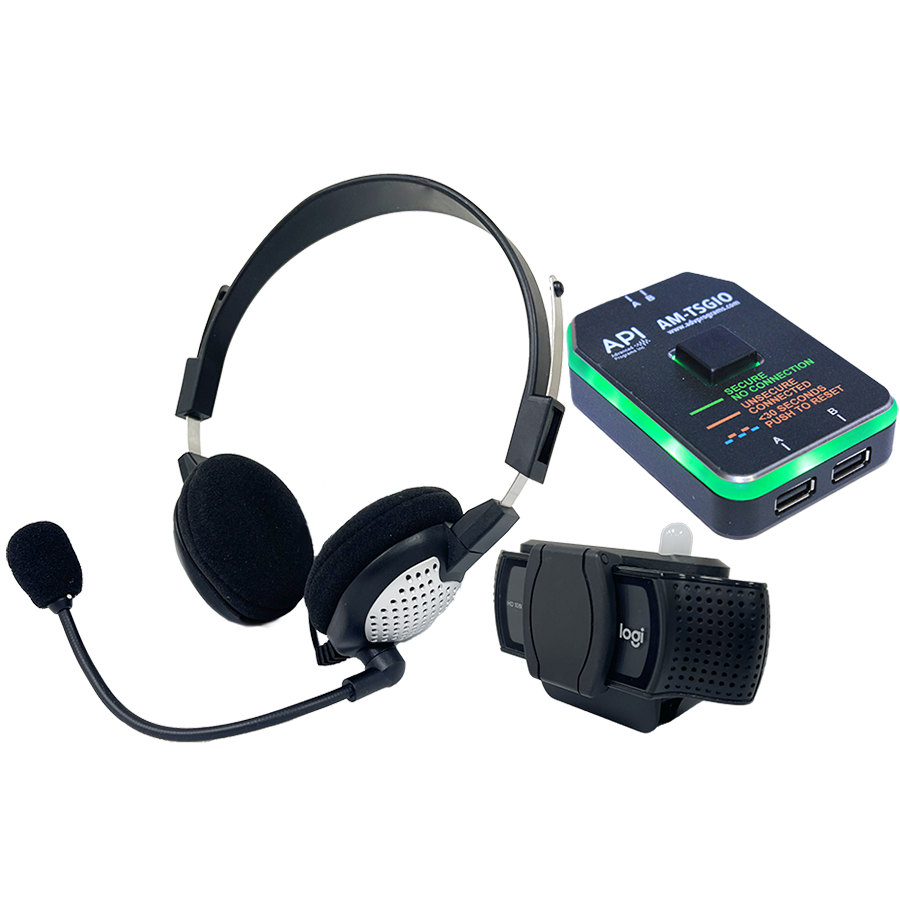

The AM-TSGIO-KIT includes API’s TSG certified USB Positive Disconnect Switch, Webcam and Headset. With 360°, tri-color LED indicators and large centrally located button, the switch enables users to know, instantly, when the TSG approved headset and webcam are secure. This complete kit ensures users can collaborate with confidence, using the most popular video conferencing software suites.
| Connectivity | 3-FT, hardwired USB cables for PC connection |
| OS Compatibility | Windows® 7, 8, 10 or higher |
| Status Indicator | 360-degree LED indicator lights |
| Kit Includes | Positive Disconnect Switch, AM-TSGIO |

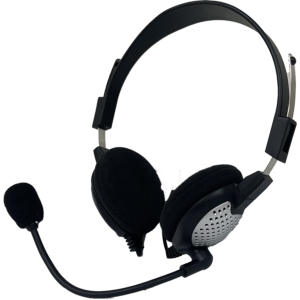

Headset
TSG, CNSSI 5001

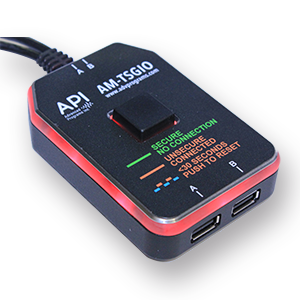

Positive Disconnect Switch

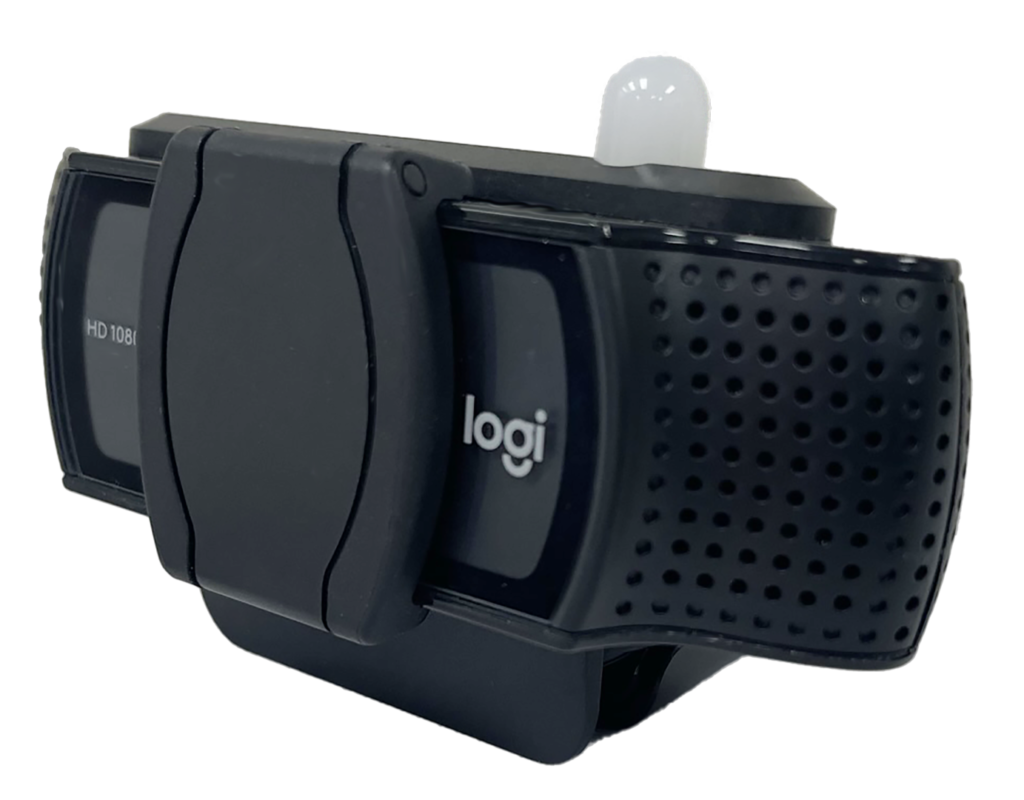

Webcam
Microphone | |
Noise cancellation | 5 db/octave |
Frequency response | 100 Hz to 10 kHz |
Signal to noise ratio | >60 dB |
Sensitivity | 1 kHz (0 dB = 1 V/Pa), -44 dB |
Current consumption | <0.5mA |
Acoustics | |
| Frequency response | 50 Hz to 4 kHz |
| Coil resistance | 32 ohm |
| Distortion | 1 kHz 1 mW, 100 dB≤ |
| Sound input | (0 dB = 20µPa) |
Ports for | AM-NC-185VM Headset AM-C920S Webcam |
Connectivity | 3-FT, hardwired USB cables for PC connection, x2 |
Compatibility | Windows® 7, 8, 10 or higher Mac OS X 10.9 or higher |
Status indicator | 360° Color LED indicator lights |
| Resolution | 1080p/30fps to 720p/30fps |
| Camera mega pixel | 3 MP |
| Focus type | Autofocus |
| Diagonal field of view (dFoV) | 78° |
| Digital zoom | 1.2x |
| Interface | USB 2.0 |
| OS Compatibility | Windows® 7, 8, 10 |
