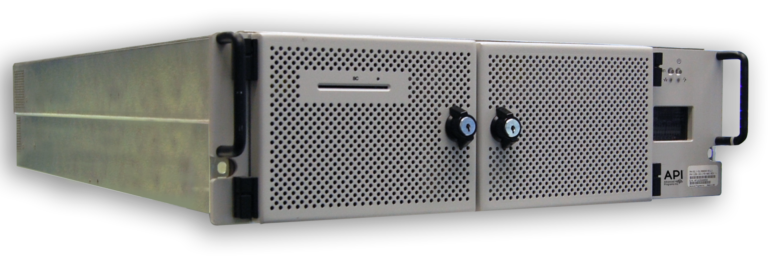

API’s TEMPEST Level I certified SL1-DL380G11 Server is based on the HPE® ProLiant DL380-G11 server series. The SL1-DL380G11 delivers performance and expandability, leveraging Intel® Xeon® processors and HP® DDR5 SmartMemory. Integrated RDX drive and cartridges are available as options for local backup and storage. Support mission-critical applications and deploy with confidence.
| Processor | Intel® Xeon® Gold 6426Y, 2.5 GHz, 16-core, x2 |
| Memory | 96GB DDR5-4800 Registered Memory 16 slots (8 channels; 2/ch) Max: 2TB (32 x 64GB RDIMM) @ 4800 MHz |
| Hard Drive | SFF HDD, HP® 2.4TB SAS 12G Enterprise 10K (2.5 in) |
| Optical Drive | Integrated HP® 9.5mm DVD RW, x1 |
| Internal RDX Drive | 4TB cartgridges |
| Input/Output | USB d-sub (keyboard/mouse), x1 |
| Power | Autosensing Power Supply, x2 HP® FlexSlot Platinum power supply kit |
| Physical Specifications | |
| Height | TBD |
| Width | TBD |
| Depth | TBD |
| Weight | TBD |
| Warranty | Three (3) years, parts & labor |
*In process
**Configuration options available
Technical Specifications are subject to change without notice.
API’s TEMPEST Level I ML1-CONSOLE is a 19” display, with full keyboard, and touchpad for ease of use and complete functionality. With API’s SL1-DL380-G11 Server, the ML1-CONSOLE is designed specifically for a 19” rack and is the ideal solution for your server needs.
Native Resolution | 1280 x 1024 SXGA |
Viewable Image Size | 19 inches |
Aspect Ratio | 5:4 |
Panel Technology | IPS |
Refresh Rate | 56-75 Hz (60 Hz, recommended) |
Response Time | 14ms |
Synchronization Rate | |
Horizontal (analog/digital) | 31.5-81.1 kHz |
Vertical | 56-75 Hz |
Brightness (typical) | 180 cd:m2 |
Contrast Ratio | 1000:1 |
Display Colors | >16.7M |
I/O | DisplayPort 1.2** |
Power | 110/240v; (50-60 Hz) |
Physical Specifications | |
Height | 3.5 inches (8.89 cm) |
Width | 17.5 inches (43.18 cm) |
Depth | 31 inches (66.5 cm) |
Weight | 24 lbs (10.88 kg) |
Warranty | Three (3) years, parts & labor |
*In process
**Configuration options available
