Video Conference Systems

TEMPEST LEVEL I and TSG

VL1-ROOMBAR-TSG

Kit Plus Video Conference System

API’s VL1-ROOMBAR-TSG is based on the Webex™ by Cisco® Room Bar. The VL1-ROOMBAR-TSG is a powerful collaboration solution that integrates with API’s 24” & 65” TEMPEST flat-panel displays and is comprised of a powerful codec and a quad-camera bar with integrated speakers, microphones and auto-framing capabilities as well as a TEMPEST Webex™ Room Navigator touch controller.

Key Features

NSTISSAM TEMPEST/1-92, Level I*
NATO SDIP-27, A*
TSG, CNSSI 5001*
Integrated camera and speakers
Includes Webex™ Room Navigator touch controller
Integrated, programmable countdown timer
Video camera with ≤ 1920 x 1080p live resolution

Summary Details

Software Compatibility	Room OS 11 or later (v10.19.3.0)
Bandwidth	≤ 20 Mbps
Video Outputs	DisplayPort, ≤3840 x 2160p60 (4Kp60)**
Audio Interfaces	Input: Internal microphone
	Output: 2x integrated speaker; 1x eternal headphone port
Security Features	Cisco^© Expressway^© Technology, H.460.18, H460.19 Available Multisite/Multipoint**
Power	100-240 VAC, 50/60 Hz, 12V DC input
VTC Dimensions	Height	≤10.00 inches (25.4 cm)
	Width	≤23.00 inches (58.42 cm)
	Depth	≤10.00 inches (25.4 cm)
	Weight	≤25.00 lbs (11.34 kg)
65″ Display Dimensions	Height	32.8 in. (84 cm)
	Width	57.2 in. (146 cm)
	Depth	2.5 in. (6.4 cm)
	Weight	130 lbs.(59 kg)
Warranty	One (1) Year	Parts and labor

TEMPEST LEVEL I

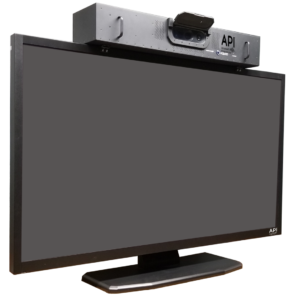

VL1-KITPLUS

Kit Plus Video Conference System

API’s VL1-KITPLUS is based on the Cisco® Spark Room Kit Plus. The VL1-KITPLUS is a powerful collaboration solution that integrates with API’s 65” TEMPEST flat-panel display and is comprised of a powerful codec and a quad-camera bar with integrated speakers and microphones, speaker-tracking and auto-framing capabilities as well as a TEMPEST telepresence touch 10 controller. Optional upgrade and enhancement features available.

Key Features

Certified to NSTISSAM TEMPEST/1-92 Level I and NATO SDIP-27 A standard
API’s security feature enhancements including secure-hold mute button with LED indicator and secure elimination of proximity detection, independent of software and firmware
Artificial Intelligence (AI)-powered and custom-designed for larger workspaces
Smart meetings with automatic framing and automatic noise suppression
Smart rooms that count people for usage metrics and resource allocation, with enhanced user interactions
Easy to use, deploy, and manage with features like Cisco® Touch I/O control device
5K Ultra-HD Camera
Available with flat-panel 65” LCD display

Summary Details

Software Compatibility	Cisco® Collaboration Endpoint Software Version 9.0 or later, or Cisco Spark Room OS
Bandwidth	Up to 6 Mbps, point-to-point
Minimum Bandwidth for Resolution	H.264 – 720p30 from 768 kbps, 720p60 from 1152 kbps, 1080p30 from 1472 kbps, 1080p60 from 2560 kbps
Video Outputs	Two video outputs support formats up to 3840 x 2160p60 (4Kp60) Live video resolutions (encode/decode) up to 1920 x 1080p60 (HD1080p) One video output Display Port (DP) Second video output is fiber optic video
Audio Interfaces	Audio inputs; Three D-9 microphone inputs certified for use with three Table Microphone 20’s, single AL1-185 Headset direct Audio outputs (external); 1 x Line Out D-9 for Headset
Protocols	H.323, SIP, Cisco Spark®
Security Features	Management via HTTPS and SSH, IP Administration Password, Menu Administration Password, Disable IP services, Network Settings protection
Power	US, 6 Ft., 115v, EU, 6 Ft., 220v, UK, 6 Ft., 220v
Options	VL1-AUDX4 Audio Splitter Kit that splits audio in/out to four individual volume-controllable channels
VTC Dimensions	Height	7.0 in. (18.5 cm)
	Width	37.4 in. (45.5 cm)
	Depth	5.3 in. (16 cm)
	Weight	18 lbs. (8 kg)
65″ Display Dimensions	Height	32.8 in. (84 cm)
	Width	57.2 in. (146 cm)
	Depth	2.5 in. (6.4 cm)
	Weight	130 lbs.(59 kg)
Warranty	One (1) Year	Parts and labor
