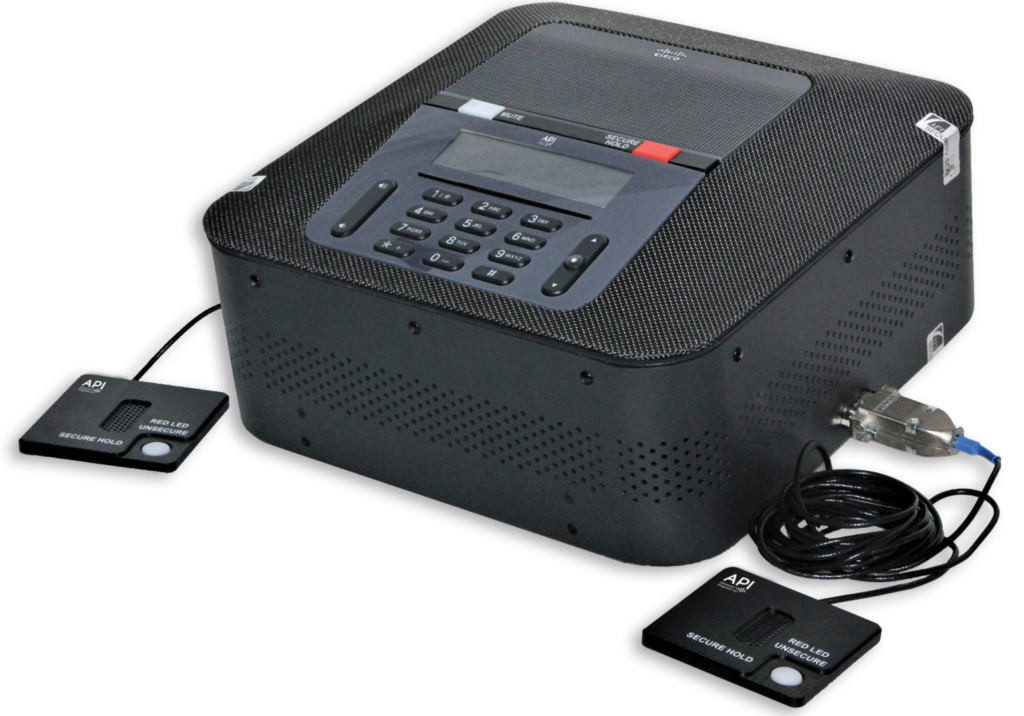

API’s TEMPEST Level I and TSG certified Cisco® 8832 IP Conference Phone (EL1-8832), is an on-hook secured unified IP conference phone available in fiber and multi-microphone configurations. The EL1-8832 delivers easy-to-use, audio conferencing with 360-degree coverage for any 20×20-foot room and up to 10 participants.
| Resolution | 480 x 128 p |
| Panel Type | 24-bit, color, backlit LCD |
| Screen Size | 3.9 inches (9.9 cm) diagonal |
| Audio | “Studio monitor” full range speaker for 360˚ room coverage** |
| Acoustics | Speaker, 100 Hz to 20 kHz Microphones,100 Hz to 12 kHz, ±3 dB Max adjustable volume, 89 dB within 0.5 m |
| Special Keys | Includes four (4) soft key bars, 2-way navigation, secure Hold button and more |
| Network Interface | Single 100 MB SC duplex fiber network interface |
| Call Manager | Cisco® Unified Communications Manger |
| Power | AC 100-240v |
| Physical Specifications | |
| Height | 11.1 inches (28.19 cm) |
| Width | 11.1 inches (28.19 cm) |
| Depth | 5.4 inches (13.71 cm) |
| Weight | 10 lbs (4.5 kg) |
| Warranty | One (1) year, parts & labor |
API’s TEMPEST Level I and TSG certified Cisco® 8841 IP Phone, the EL1-8841 provides the critical security features required for both unclassified and classified VoIP telephony systems. Optional accessories include push-to-talk handset, headsets and colored bezels.
Resolution | 800 x 480 p |
Panel Type | 24-bit, color WVGA |
Size | 5 inches |
Audio | Handset, wideband-capable with 21-inch (55 cm) coiled cord Passive noise-canceling headset |
Backlit Indicators | Audio path, select keys, line keys and message-waiting |
Audio Ports | 3.5mm stereo line in/out jack (for headset) |
Network Interface | Single 100Mb/s SC duplex fiber network interface** |
Special Keys with Standard Keypad | Includes Line and Soft keys, 4-way navigation/select set, Secure Hold and more |
Network Interface | Single 100 MB/s SC duplex fiber network interface** |
Communications Manager | Cisco® Unified Communications Manager |
Power | 110v-240v AC-to-DC (48V) power supply** |
Physical Specifications | |
Height | 9.01 inches (22.88 cm) |
Width | 10.13 inches (25.73 cm) |
Depth | 2.57 inches (6.52 cm) |
Weight | 2.58 lbs (1.17 kg) |
Warranty | One (1) year, parts & labor |
*In process
**Configuration options available

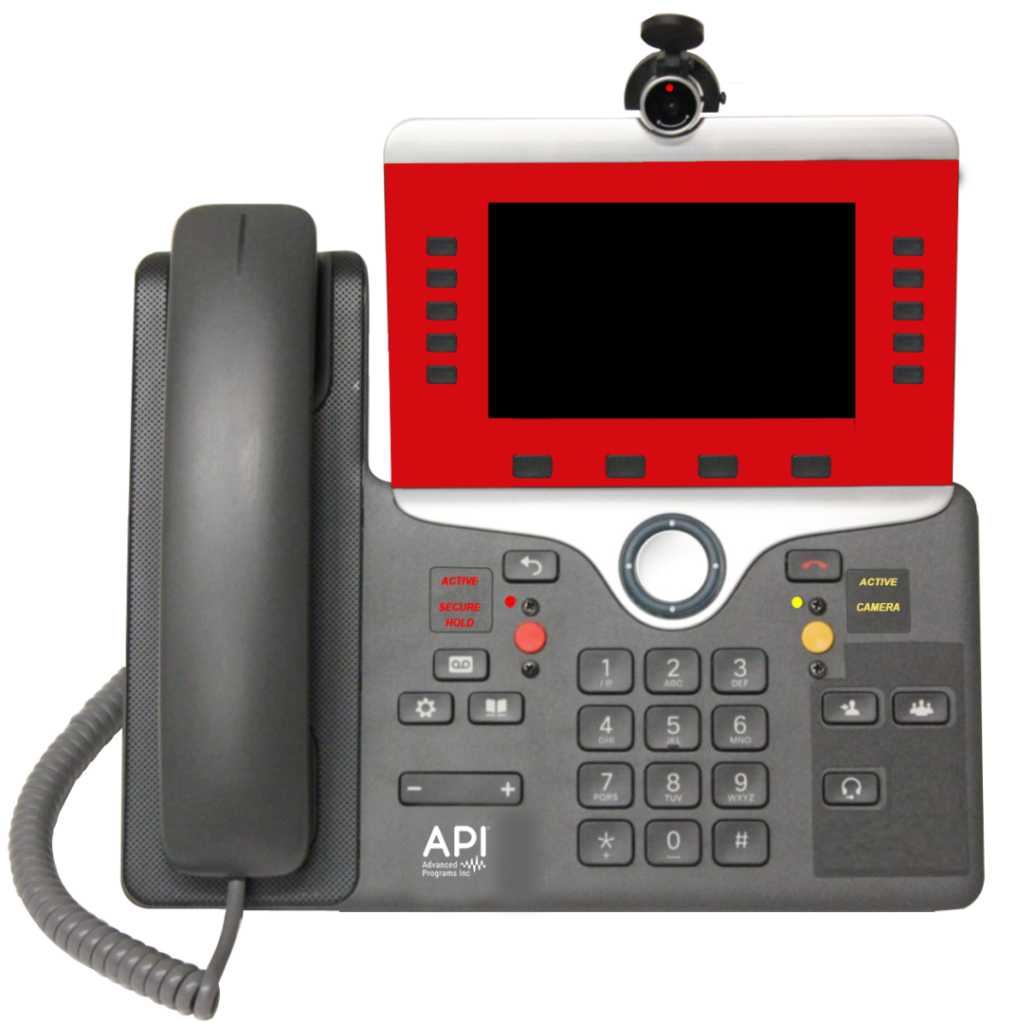

API’s TEMPEST Level I and TSG certified Cisco® 8865 IP Video Phone, EL1-8865, provides the latest in Cisco® technology with 720p HD video and wideband audio for crystal clear voice communications. Optional accessories include push-to-talk handset, headsets and colored bezels.
Resolution | 800 x 480 ppi |
Panel Type | 24-bit, color WVGA |
Size | 5 inches |
Video | 720p HD video (encode and decode) |
Audio | Handset, wideband-capable with 21-inch (55 cm) coiled cord** |
Backlit Indicators | Audio path, select keys, line keys and message waiting |
Audio Ports | 3.5mm stereo line in/out jack (for headset) |
Network Interface | Single 100Mb/s SC duplex fiber network interface |
Special Keys with Standard Keypad | Includes Line and Soft keys, 4-way navigation/select set, Secure Hold and more |
Network Interface | Single 100MB SC duplex fiber network interface** |
Call Manager | Cisco® Unified Communications Manager |
Power | 110v-240v AC-to-DC (48V) power supply** |
Physical Specifications | |
Height | 9.01 inches (22.88 cm) |
Width | 10.13 inches (25.73 cm) |
Depth | 3.87 inches (9.83 cm) |
Weight | 3.4 lbs (1.56 kg) |
Warranty | One (1) year, parts & labor |
*In process
**Configuration options available
Ask the API Sales Team to help you choose the right solutions for your organization.
An array of colors to choose from to make classification levels clear
Ensure the security of background conversations with push-to-talk
Convenient, space saving wall-mounting options, even with a KEM unit!
For secure, hands-free communication
The right power supply solution to meet your organization's specific needs
For more ways to enhance your experience with API's TEMPEST and TSG products
