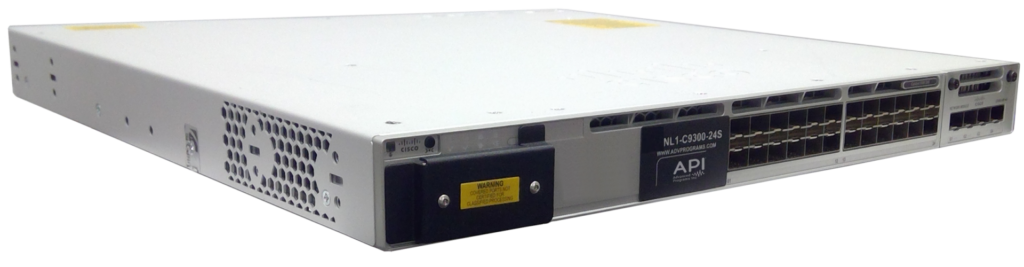

API’s TEMPEST NL1-C9300-24S Switch is based on the Cisco® Catalyst WS-C9300-24S-A switch. The Catalyst 9300 Series is designed for Cisco® StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable solution. With the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture this switch not only protects your investment but also allows a larger scale and higher throughput.
Ports | 24x 100MB or 1 GB Fiber SFP (Small Form Factor Pluggable) slots** |
Memory | 8 GB GBD RAM |
Operating System(s) | Cisco® IOS-XE |
Power | 715W AC power supply, 110-220v, 50-60 Hz, auto-sensing, auto-switching** NEMA 5-15 (US) power cord** |
Physical Specifications | |
Height | 1.73 in. (4.39 cm) |
Width | 17.5 in. (44.45 cm) |
Depth | 19.2 in (47.9 cm) |
Weight | ≤16.84 lbs (37.12 kg) |
Warranty | One (1) year, parts & labor |
*In process
**Configuration options available

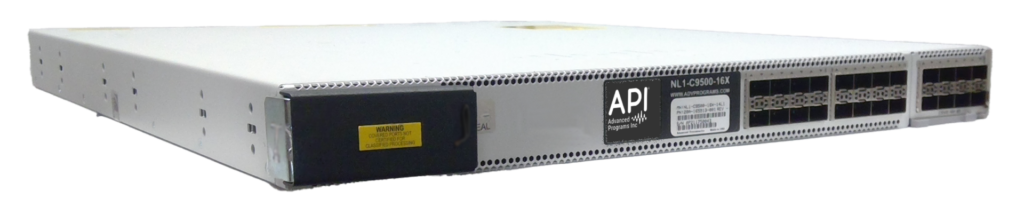

API’s TEMPEST NL1-C9500-16X Switch is based on the Cisco® Catalyst C9500-16X-A switch. The NL1-C9500-16X is an enterprise-class core and aggregation layer switch. The switch comes with a 4-core x86, 2.4-GHz CPU, 16-GB DDR4 memory, and 16-GB internal storage. TEMPEST certified with 16x 1/10G Gigabit Ethernet SFP ports, it is compatible with 100-MB, 1-GB and 10G SFP modules and is offered with and optional redundant power supply.
Ports | 1/10G Fiber SFP slots, x16** |
Memory | 16 GB DRAM |
Operating System(s) | Cisco® IOS-XE |
Power | 950W AC power supply, 110-220v, 50-60 Hz, autosensing, auto-switching**, x1 NEMA 5-15 (US) power cord**, x1 |
Physical Specifications | |
Height | 1.73 in. (4.39 cm) |
Width | 17.5 in. (44.45 cm) |
Depth | 21.8 in (55.37 cm) |
Weight | ≤24 lbs (52.91 kg) |
Warranty | One (1) year, parts & labor |
*In process
**Configuration options available
FOR FURTHER DETAILS ON THESE AND OTHER API PRODUCTS
